how does a mistral equipe mast track work?

Reply
Created by KennyK > 9 months ago, 9 Jun 2016
KennyK
QLD, 395 posts
9 Jun 2016 9:45PM
Thumbs Up

Can someone please explain to me how a mistral equipe mast track works.
I know what they do and why, but don't know how they operate.
I'm thinking about buying one but the track is not working, just wanting have another look at it and try to see why, and what I may be able to do to repair it.
Thanks.

RichardG
WA, 3758 posts
9 Jun 2016 11:17PM
Thumbs Up

Is then 1988 Mistral Equipe mast track which looks like this ?






KennyK
QLD, 395 posts
10 Jun 2016 7:40AM
Thumbs Up

Yes it's the same as that, only the rope is hanging out the front.
I think the pedal may have been a bit different?

Chris 249
NSW, 3513 posts
10 Jun 2016 8:54AM
Thumbs Up

I'm no expert but I think there is a spring-loaded "cleat" of sorts that jams off a loop of rope. The rope runs from the back of the track to the front of the track and is secured to the slide. When you push the pedal down, the "cleat" (inverted commas 'cause I don't know whether it's like a cleat or like a yacht's jammer) releases the rope, allowing the slide to move.

I've never had to get into mine because they always work. I understand that the problems occur when the rope is worn to the point where the "cleat" won't hold it, and that replacing the rope to fix the issue is fiddly and can be annoying, but is definitely possible.

jusavina
QLD, 1489 posts
10 Jun 2016 9:36AM
Thumbs Up

Chris 249 summed it up pretty well.

joe windsurf
1482 posts
10 Jun 2016 7:48AM
Thumbs Up

those are pics of a Mistral Equipe / MEQ 1/One

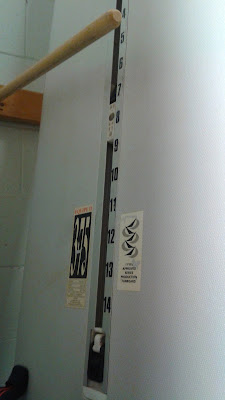

here is a pic of a MEQ II/2 track
NOT sure how the ropes work in the guts
on this version you flip up the tab and press down to slide on track
ALSO accepts standard mast base !!!
GOOD LUCK !!

KennyK
QLD, 395 posts
10 Jun 2016 11:01AM
Thumbs Up

Select to expand quote
joe windsurf said..
those are pics of a Mistral Equipe / MEQ 1/One
here is a pic of a MEQ II/2 track
NOT sure how the ropes work in the guts
on this version you flip up the tab and press down to slide on track
ALSO accepts standard mast base !!!
GOOD LUCK !!



Yeah, looks more like this one.
So flip up the tab at the back of the track and press down on "what" to slide the mast base?

John340
QLD, 3362 posts
10 Jun 2016 11:30AM
Thumbs Up

Flip the small black tab at the tail end of the mast track, up and over, so that it points toward the nose of the board. When you depress the black tab, it releases the friction on the rope and allows the mast base carriage to slide backwards and forwards

joe windsurf
1482 posts
10 Jun 2016 5:59PM
Thumbs Up

and the rope "hanging out the front" is independent of the mast track
believe it is a "safety rope" used to attach to mast foot so as NOT to lose the sail no matter what ..

KennyK
QLD, 395 posts
10 Jun 2016 8:14PM
Thumbs Up

Thanks guys, I'll know for the future, the board I was going to buy tomorrow, got sold today to someone who made a higher offer.
Even though I had been to see it yesterday and made arrangements to go and get it tomorrow at an agreed price.

BSN101
WA, 2370 posts
10 Jun 2016 6:39PM
Thumbs Up

Select to expand quote
KennyK said..
Thanks guys, I'll know for the future, the board I was going to buy tomorrow, got sold today to someone who made a higher offer.
Even though I had been to see it yesterday and made arrangements to go and get it tomorrow at an agreed price.



That seems to happen a lot.

And not answering messages about item for sale then the item disappears off the for sale list a month later.

Keep looking.

joe windsurf
1482 posts
11 Jun 2016 11:13AM
Thumbs Up

you missed a good one

joewindsurfer.blogspot.com/2016/04/mistral-equipe-ii2.html

James does a better job sailing it than I
