How to repair straps from harness, sails, bags....

Reply
Created by Manuel7 > 9 months ago, 14 Mar 2023
Manuel7
1318 posts
14 Mar 2023 11:09AM
Thumbs Up

A little long but can save $$$.

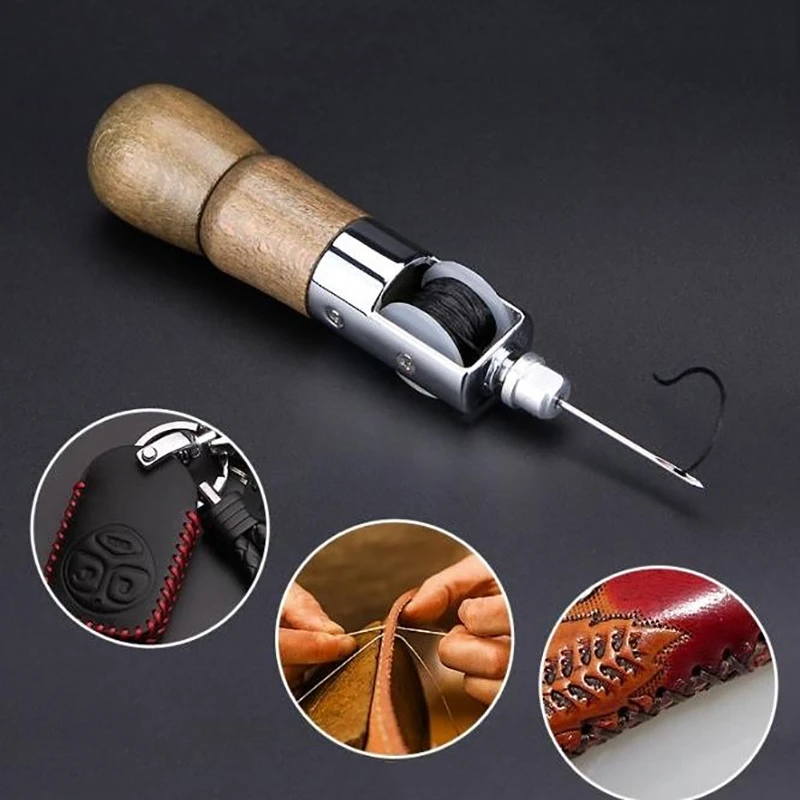

A friend of mine replaced sail panels with this sewing awl (pardon the pronunciation!)
I wonder if their #4 needle is too big for sail material though?

GasHazard
QLD, 385 posts
14 Mar 2023 2:48PM
Thumbs Up

I have one of those Speedy Stitchers. It works a treat but the thread handling is crappy for non waxed thread. If I had to replace it I'd go for the one with the spool in front. _.webp

Sandee
QLD, 264 posts
15 Mar 2023 7:13AM
Thumbs Up

I find sewing machine needles are quite satisfactory in the sewing awl, and even the really heavy-duty needles for sewing denim, etc, are much finer than the needles that came with the awl. Paired with a Dyneema fishing braid of suitable size, makes a very strong repair that should withstand the elements.

Manuel7
1318 posts
15 Mar 2023 5:32AM
Thumbs Up

When the stitches are close to something that gets in the way (in the case of a harness) I think it's difficult using the machine.

Can we use a smaller needle on the awl?

Manuel7
1318 posts
15 Mar 2023 9:48AM
Thumbs Up

Misread the previous post badly!
That's awesome that we can use smaller needles.

oldmic
NSW, 357 posts
15 Mar 2023 7:30PM
Thumbs Up

Select to expand quote
Manuel7 said..
A little long but can save $$$.
A friend of mine replaced sail panels with this sewing awl (pardon the pronunciation!)
I wonder if their #4 needle is too big for sail material though?



Hey Manuel, thanks for the heads up, just ordered one. Got a few repair projects. Do you use "Sailing Whipping Line" think that's its name, it's a waxy neutral colour thread? Thanks mike

Manuel7
1318 posts
15 Mar 2023 6:58PM
Thumbs Up

My idea was to make sails so I had purchased a roll of V-92 uv resistant polyester thread in black which I believe is best at absorbing UVs. That's what I used.

The link is on my website (windsurfing.lepicture.com/tips-and-tricks/) at least in the US. For France for instance I couldn't find the exact same product or equivalent. Where are you located?

Forgot to mention that, although possible, stitching black on black is harder to see where we are and where were going!

oldmic
NSW, 357 posts
21 Mar 2023 9:54AM
Thumbs Up

Thanks Manuel, S'Stitcher arrived it's a great little tool.

Gorgo
VIC, 5098 posts
21 Mar 2023 11:51AM
Thumbs Up

You can use standard sewing machine needles and standard heavy duty threads in the Speedy Stitcher.

You can wind the standard thread around the spool over the top of the waxed thread, or just remove the waxed thread and hand roll the thread.

I have used a rubber band around the handle to provide some extra tension so the thread doesn't spool out too fast. It does't really matter if the tension off the spool is too loose as long as you pull the stitch snug it will be fine. You can wind excess thread back onto the spool, or just use it up in a few stitches before continuing. Just keep things neat.

A few tricks I learned for hand sewing (not using the speedy stitcher)

- Pass the thread through the eye of your needle ands just take a short length through. The put the point of the needle through the middle of the thread and pull the thread back down over the needle. That locks the thread onto the needle so it won't accidentally fall off and you don't have a long loose piece hanging around. It's much easier with a sharp needle and pulling the thread tight on a hard surface.

?t=138

- Put needles on both ends of your thread. You can do variations of passing each needle through the same hole, or a nearby hole. You can do single or double knots or whatever to lock each stitch if you want.

- Mark your stitch length using tape or a contrasting pencil, anything that helps you make regular stitches. The end result looks better and gathers and tensions all line up to make a really neat job.

kiteforum.com/viewtopic.php?f=107&t=2412130

- The other thing is good light and infinite patience. You look at a hand sewing job and think it will take forever. But if you slowly and patiently stitch then the end result can be very satisfying.

PS Blind hand stitching wetsuits is very easy and the end result is excellent. Cut out the damaged section. Cut a new piece to fit from an old wettie. Glue the patch in with neoprene cement (not urethane!!!!!!). Blind stitch by hand.

I scrounged the end of a spool of thread from a sailmaker 20-odd years ago. I still use that thread for sewing splices and small repairs. I bought a couple of 1000m spools of Dabond bonded polyester thread that will last for a lifetime of home projects.

Manuel7
1318 posts
21 Mar 2023 9:03AM
Thumbs Up

Wow lots of great info! Will need to digest and get back to you.

Sail rite has a tear test on a box stitch pattern.., 1800lbs was needed to make the threads tear.
